Infrastructure

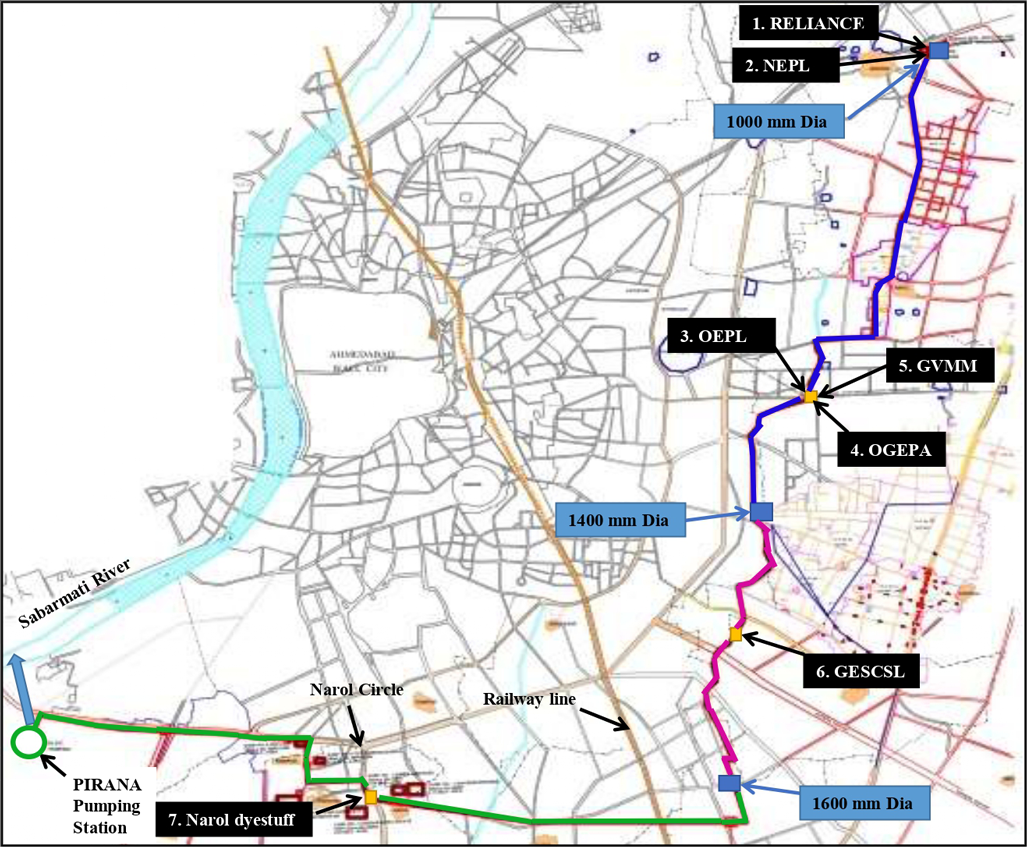

MEGA LINE DETAILS
	Year of Commissioning	2001
1	Total length	27 Km
2	Diameter of the pipe	1000 mm	from Naroda to New Maninagar
		1400 mm	From New Maninagar To Railway line Vatva
		1600 mm	From Railway line Vatva To Pirana pumping station
3	Carrying Capacity	Installed capacity	120 MLD
		Existing capacity	Dia of pipe in mm	Full flow capacity in MLD		Capacity with 80% considering ventilation as per Manual in MLD	Percentage of silting	Final capacity considering Silting in MLD
			1000	52		50.34	30%	40.14
			1400	95		91.96	40%	59.95
			1600	120		116.16	40%	75.72
			Reference: MARS Engineers Report January 2022
4	List of Member & Booking Quanity in KLD
I.	Naroda Enviro Projects Ltd. – Naroda	14,000	Discharge in 1000 mm diameter		Current Capacity 40.14 MLD
II.	Reliance Industries Ltd. -Naroda	5,000
III.	Odhav Enviro Projects Ltd. – Odhav	1,600
IV.	Odhav Green Enviro Projects Ltd. – Odhav	1,000
V.	Gujarat Vepari Maha Mandal – Odhav	1,000
VI.	The Green Environment Services Co-Operative Society Ltd. – Vatva	35,000	Discharge in 1400 mm diameter		Current Capacity 59.95 MLD
VII.	The Narol Dyestuff Enviro Society – Narol	400	Discharge in 1600 mm diameter		Current Capacity 75.72 MLD
	Total	58,000	Discharge in 1600 mm dia		Current Capacity 75.72 MLD

Beneficiaries and their Booking volume

Sr. No.	Member Name	Quantity in MLD	% of Sharing
1.	Naroda Enviro Projects Ltd.	14.00	24.14
2.	Reliance Industries Ltd.	05.00	08.62
3.	Odhav Enviro Projects Ltd.	01.60	02.76
4.	Gujarat Vepari Maha Mandal	01.00	01.72
5.	Odhav Green Enviro Projects Association	01.00	01.72
6.	Green Environment Services Co. Op. Soc. Ltd.	35.00	60.34
7	The Narol Dyestuff Enviro Society	00.40	00.70
Total		58.00	100.00
